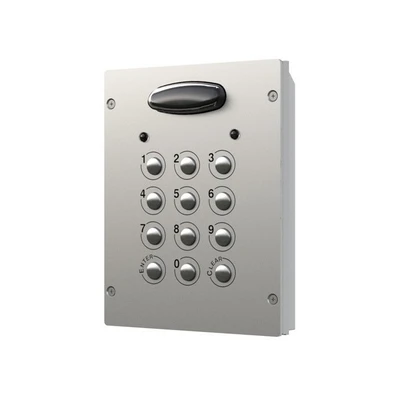

Videx 8000 Series Codelock Module With 2 Codes, 2 Relays

Videx VX8800S 8000 Series Codelock Module With 2 Codes, 2 Relays

The codelocks use the latest microprocessor based PCB, which (when combined behind its tough stainless steel keypad) gives trouble free controlled access. The unit is easy to install and extremely robust at a low cost.

It can be used as a stand alone keypad or combined with other 8000 series audio and video modules. Videx produce a wide range of digital codelocks for access control systems among which there is a modular version of the 8800 and 8900.



Features:

• Stainless steel
• Easy to install
• Compatible with 8000 series modules



Technical Specifications:

• Input voltage – 12-24 V AC or DC
• Power consumption – 2 VA
• Storage capacity – 3 codes
• Code length – 4 to 8 digit
• Relay time – 1 to 99 seconds or latching
• Relays – 2 (C, NO, NC)
• Relay contacts – 24 V AC/DC @ 3 A
• Push to exit inputs – 2
