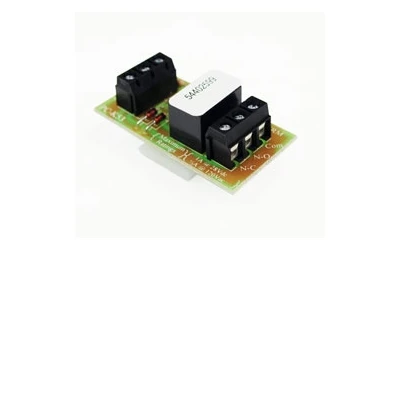

TRM

The transistorised relay module requires a permanent 12Volt DC supply.


It is triggered from a very low current source, such as communicator ports on alarm control panels. Its function has been “swept up” and is available in the Ultra Universal Relay AT – 182.

However it is still an extremely useful product in its own right where small size and cost matter.

Specification



Supply Voltage	8 – 16V DC
Input (Trigger) Voltage	3 – 16V (max) DC
Relay Contacts Rated at	1 Amp @ 24V DC 0.5 Amp @ 100V AC
Temperature Range	-25 to +50°C
Size	48mm x 25mm
