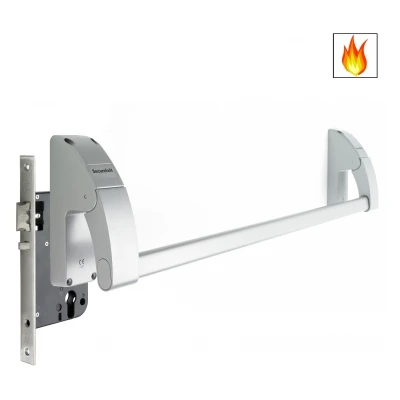

Push Bar Panic Actuator With 72mm Mortice Anti-Thust Night Latch (Reversible)

The Right Hand model has been discontinued, the Left hand can be reversed on site.

EN1125 – 2008 Push Bar Panic Exit Hardware (Silver)

• Fire-rated for use on timber and steel doors
• Can be fitted with Ooutside Access Device either with a knob or lever handle
• Tested to 240 salt spray hours making it ideal for humid environments
• Easy to install
• Adjustable for both left and right handed applications



Features & Benefits

*Certified to EN1125:2008

*Tested for use on fire doors to EN 1634-1

*Lockcase meets the requirements of EN 12209

*Can be cut down on site for doors up to 1300mm wide

*Range of accessories available including single cylinder, rebate kit, and micro-switch

*Powder coated silver finish as standard

*Night latch has reversible latch bolt, 72mm centres, 60mm backset and a single poece stainless steel square forend

*Optional micro switch can be concealed in the slave unit to integrate with access control system

*Supplied with fixings for timber doors

*Handing fully reversible or can be ordered

*Fire Rated for 30 & 60min on Timber Doors
