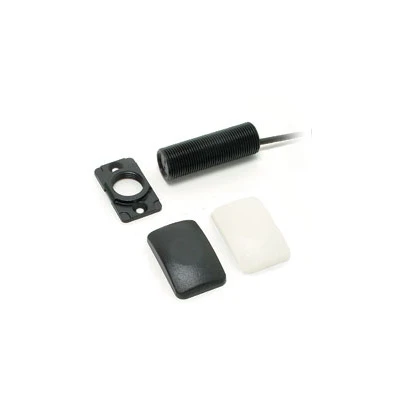

Proximity Vandal Proof Reader

	Use with Switch2 or Net2
	A great solution for vulnerable areas
	The reader is buried in a wall or door frame
	Supplied with two coloured caps
	Innovative design
	IPX7 rated – suitable for external use

About – The vandal proof reader is for use with Switch2 and Net2 systems. The barrel-like construction of the reader means that it can be buried in a wall. This means that it is ideal for use in vandal prone areas where malicious damage could be a problem. Black and white caps are supplied with the reader. The end cap is used as a marker, so users know where to present their tokens. Replacement covers are available to Paxton registered installers free of charge.



Installation – The reader is wired as shown on the control unit label. The reader itself is inserted into a 20mm diameter hole in the wall or door frame. The cap is then mounted as a visual marker for users. The reader should not be mounted into metal. The illustration below shows the different fitting options.

Operation – A token is read by holding it within close proximity of the reader. Once a token has been read the control unit looks up the access permissions of that user. Access is then granted or denied as appropriate.
