Proximity Readers – P Series

	Use with Switch2 or Net2
	Simple mounting
	Read range up to 100mm with PROXIMITY cards

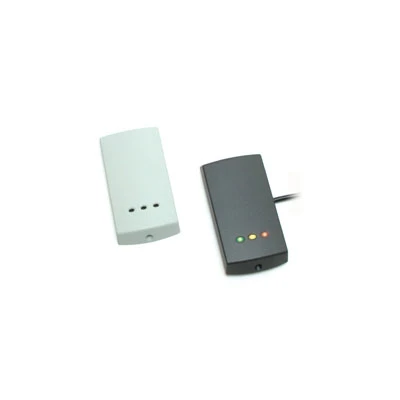

	Supplied with a choice of black or white fascias
	Low profile – less than 16mm deep
	4 sizes

About – P series readers are for use with Switch2 and Net2 systems. The readers are supplied with a choice of black or white fascias. Other colours are available. Replacement fascias are available to Paxton Access registered installers free of charge. P series readers are available in four sizes.



Installation – The reader is wired as shown on the control unit label. Be sure to avoid mounting on metal surfaces or near other proximity readers as this will affect the read range. The cable exits centrally from the back of the reader making drilling and mounting very accurate.

Operation – A token is read by holding it within close proximity of the reader. Once a token has been read the control unit looks up the access permissions of that user. Access is then granted or denied as appropriate. If access is granted the green LED flashes. If access is denied the red LED flashes.
