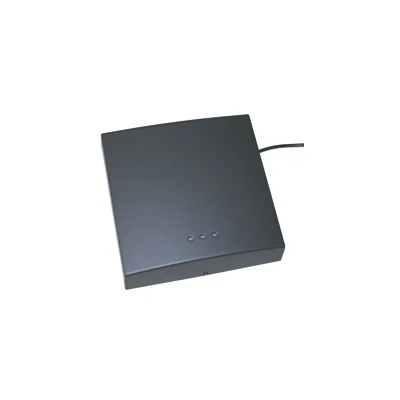

Proximity Reader P200 Metal Mount

Box contents

	Plastic – proximity base housing P200E
	Plastic – proximity reader clip on cover P200E – Black
	Fitting kit – P200
	Packaging – Multi control unit box without insert.
	Label – Paxton box label
	Label – Returns label large
	Label – Support label large UK version
	Label – Void if seal broken, large
	Sales Code label, 40x25mm, Paxton EU
	P200 proximity reader module

About – P series readers are for use with Switch2 and Net2 systems. The readers are supplied with a choice of black or white fascias. Other colours are available. Replacement fascias are available to Paxton Access registered installers free of charge. P series readers are available in four sizes.

Installation – The reader is wired as shown on the control unit label. Be sure to avoid mounting on metal surfaces or near other proximity readers as this will affect the read range. The cable exits centrally from the back of the reader making drilling and mounting very accurate.

Operation – A token is read by holding it within close proximity of the reader. Once a token has been read the control unit looks up the access permissions of that user. Access is then granted or denied as appropriate. If access is granted the green LED flashes. If access is denied the red LED flashes.
