Proximity Keypads – KP Series

	Use with Switch2 or Net2
	Keypad and proximity reader all in one
	Read range up to 100mm with PROXIMITY cards
	Easy mounting

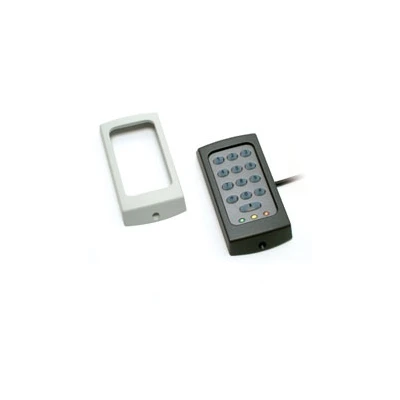

	Supplied with a choice of black or white bezels
	Low profile – less than 16mm deep
	2 sizes

About – KP readers are a keypad and a proximity reader all in one. This allows card plus PIN (or code) access control with a single reader. KP readers are for use with Switch2 and Net2 systems. The readers are supplied with a choice of black or white bezels. Additional colours are available to Paxton Access registered installers free of charge.

Installation – The reader is wired as shown on the control unit label. Be sure to avoid mounting on metal surfaces or near other proximity readers as this will affect the read range. The cable exits centrally from the back of the reader making drilling and mounting very accurate.

Operation – A token is read by holding it within close proximity of the reader. Once a token has been read if the reader has been configured for code/PIN this must then be entered using the keypad. The control unit verifies the information and grants or denies access as appropriate. If access is granted the green LED flashes. If access is denied the red LED flashes.

Available Options

K50 355-110     h100mm x 50mm

K75 375-110     h143mm x 75mm

K75 With Screw terminal 375-120
