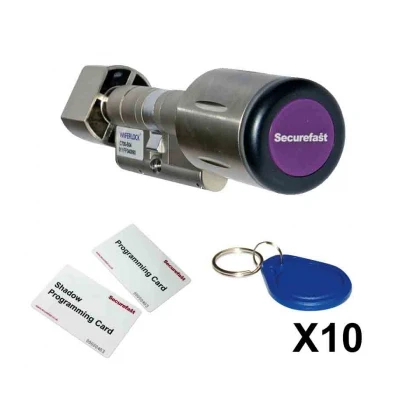

Mechatronic Cylinder (45/40) With Program Card, 10 Fobs & Shadow Cards

Securefast Mechatronic cylinders are designed for ease of use and installation. The cylinders are available with full IP67 rating, making them ideal for both internal and external applications.Securefast Mechatronic cylinders are designed for all areas in commercial, educational and hospital environment. The cylinder has been tested on a 30–minute timber fire door and is the perfect solution for multi–point locks where access control is required.The cylinder is programmed by way of a shadow card system, where you can program the cards in with the program card and delete cards with the shadow card provided. The lock is powered by a CR2 battery which is available from all leading stores or direct from Securefast. The battery life is for 60,000 operations or 5 years on standby.Low power battery warning approximately 100 operations ‘bleeping’ sound when a card is offered.Offset cylinders available using extension pieces.

Features & Benefits

* Available as a Euro Profile single reader, double reader and a reader & turn

* Available as a Scandinavian oval single reader

* Waterproof (IP67 Rated)

* Anti drill & anti-snap

* Smart sleep mode

* Firmware upgragable

* Acoustic low power warning

*Stainless steel bar for anti-snapping

*Module design for thicker doors with 5mm increment spacers on internal doors.



Mechatronic Cylinder (45/40) with Program Card, 10 Fobs & Shadow Cards



Cylinder

• Reader and Turn
• Anti Drill Protection
• Reading Distance up to 25mm
• Uses CR2 Battery
• Battery life 60,000 operations or 5 year standby
• Acoustic low power warning approximately 100 operations
• The cylinder has been fire rated for use on a 30 minute timber fire door
• Stainless steel bar for anti-snap
• Module design for thicker doors with 5mm increment spacers

Credentials: Programming Card, 10 Fobs and 10 Shadow Cards
