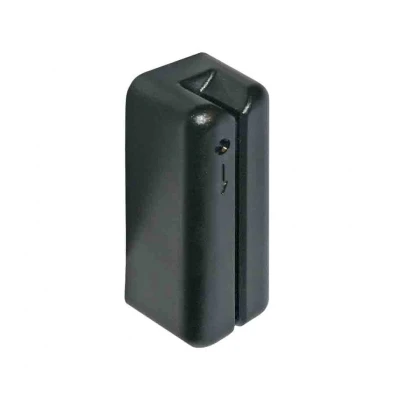

Magnetic Swipe Card Reader

• Single tri-colour LED normally red, green and yellow activated via external line
• Internal buzzer with external control line
• Stainless steel fixing plate with internal/external secure fixing
• Reliableread capability with head life in excess of 1 million passes
• Available either as Track 1, Track 2 or Track 3 ISO
• 2.5m (8.2ft) 8 core screened cable
• Dimensions: H 112 x W 42 x D 36mm
• Vandal-resistant
• Card speed is 125 to 380cm per second
• Data range 325 to 12,250 bits per second
• All electronics are encapsulated in epoxy resin (except read head and buzzer aperture)
• Reads lo-co and hi-co magnetic-stripe cards
• Weatherproof –25°C to +65°C
• Clock & Data outputs



The ARD magnetic stripe stripe reader provides high–performance and reliability for any application; whether high security access control, electronic point of sale, time and attendance or purely data acquisition.A wide variety of output formats are available to provide flexibility for most applications. The ARD060 magnetic stripe reader is manufactured from impact resistant UV stabilised acrylic. For Hardwearing and durability use in the harshest of conditions.All the electronics are embedded in epoxy resin for weather–proof and vandal–resistant –making it an ideal choice for both indoor and outdoor use. The reader heads provide an extremely reliable reading capability with over 1 million head passes. The single tri–colour LED provides a visual indicator showing the current reader status, whilst the internal buzzer provides an audible indicator. Both indicators are utilised via external links.

Features & Benefits

*Single tri-colour LED normally red, green and yellow activates via external line

*Internal buzzer with external control line

*Stainless steel fixing plate with internal/external secure fixing

*Reliable read capability with head life in excess of 1 million passes

*Available either as Track 1, Track 2 or Track 3 ISO

*2.5m (8.2ft) 8 core screened cable

*Dimensions: H 112 x W 42 x D 36mm

*Vandal-resistant

*Card speed is 125 to 380cm per second

*Data range 325 to 12,250 bits per second

*All electronics are encapsulated in epoxy resin (except read head and buzzer aperture)

*Reads lo-co and high-co magnetic-stripe cards

*Weatherproof –25°C to +65°C

*Clock & Data outputs.
