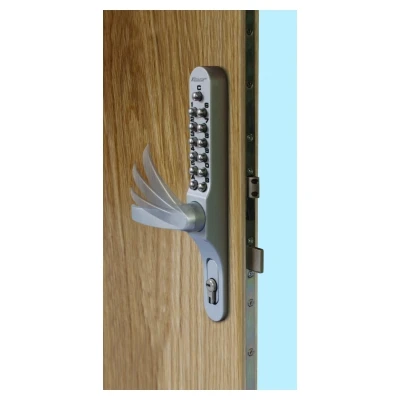

Keylex 700 – High Security, Mechanical Digital Lock

Outside Operation: Lever handle on entry of code

Inside Operation: Lever handle free exit

Number of Codes: One – always prefixed by”C”

Combinations: Over 4,000

Code Length: Up to 12 Digits (recommended 3 to 6 digits)

Holdback: No

Key Override: Euro profile cylinder

Finishes: Satin Chrome





OPERATION



• • Mechanical retraction of latch upon entry of code
  • Non sequential code.



FEATURES



• • High security – external or internal door installations
  • Provides escape from inside, without code entry
  • Ideal for external doors & on any door where a euro profile keying system is required
  • Suit any sash lock with 70-72mm/90-92mm centres with any backset
  • Suits doors 30-50mm (up to 75mm optional) thick
  • Particularly suited for use with aluminium or hollow metal sections.
  • Door style and backset as per the chosen latch
  • Now available with built in slipping clutch mechanism
  • Suitable for 8mm spindle





CYLINDER & SASH LOCK NOT INCLUDED
