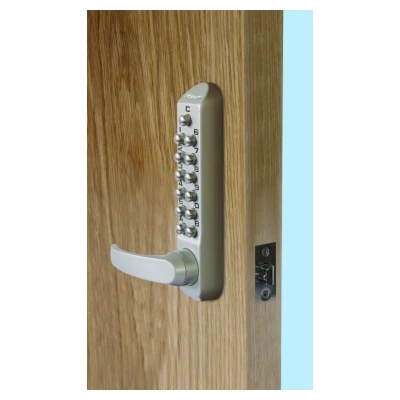

Keylex 500 Narrow Style Push Button Lock

Outside Operation: Lever handle on entry of code

Inside Operation: Lever handle free exit

Number of Codes: One – always prefixed by”C”

Combinations: Over 4,000

Code Length: Up to 12 Digits (recommended 3 to 6 digits)

Holdback: Free passage facility

Latch: Adjustable 60mm – 70mm latch

 Finishes: Satin Chrome





OPERATION



• Mechanical retraction of latch upon entry of code
• Medium Duty
• Non sequential code.

FEATURES

• Ideal for low security internal door installation
• Allows free passage from both sides at code users discretion
• Passage function facility achieves the same results as holdback.
• High quality tubular deadlocking latch ensures secured re-locking everytime.
• Anti-thrust snib on latch.
• Suits doors 30-45mm (optional up to 70mm)
