High Quality 5 Way Master To Slave Intercom

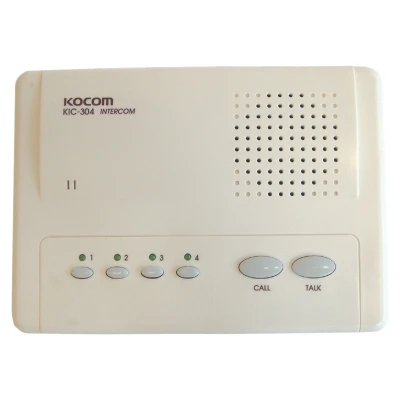

Master Station

A high quality desk master station for use with up to 4 P152L slave stations. There are 4 call buttons each equipped with an LED. A volume control is provided for the ring level. Upon calling a slave unit a connection is opened immediately giving an added monitoring function. Just one power supply is required per system. Adaptor 6 VDC (P003B not supplied), continuous current 30 mA. Requires 2 core cable to each station. Maximum transmission range 200 m.

• Adaptor 6 V DC (not supplied)
• Continuous Current: 30 mA
• Cable required: 2 core to each station
• Max Transmission Range: 200 m

• Depth (mm): 45
• Height (mm): 125
• Width (mm): 175
• Product Dimensions (mm): 125x175x45
• Net weight (kg): 0.265
• Colour: white
