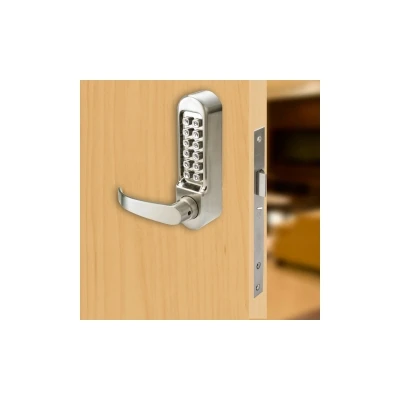

Digital Lock With Lever & Square End Escape Sash Lock

Easy Code Change with 72mm CRS Mortice Lock Case

• The SBL365.SL range offers the easy code change with the options of sash, nightlatch and escape sash lock, complete with a security escutcheon
• Round or square end forend, euro profile lock cases
• All lockcases have a backset of 60mm
• Lever operated mechanical digital lock
• Fire-rated for 30min and 60min timber doors to EN1634-1
• The intumescent has been tested in accordance with BS EN 1363: PT 1:1999 and expands to 5 to 10 times their origional size sealing the gaps around the lock case

The SBL365 range of digital locks with the lock case are available with an Escape Sash Lock allowing safe egress from the inside with one action every time, a Mortice Night Latch with an anti thrust increasing security of the latch bolt by preventing it from being forced back and a Mortice Sash Lock offering a separate deadbolt which is secured by the key and not controlled by the mechanical digital lock.The SBL365 range of fire rated mechanical digital locks has been tested to EN1634-1 for use on 30 min. and 60 min. fire door’s. Intumescent fitted to the lock is essential for use in fire doors creating additional protection to the door’s overall performance.The Securefast intumescent seal SIN1090 is supplied with the fire rated package for easier and accurate solution. To complete the package seals are provided for behind the striker.

Mechanical digital locks are used extensively in hospitals, schools, universities etc. on fire doors, therefore it is important that the integrity of the door is not compromised by failing to omit the intumescent seals.
