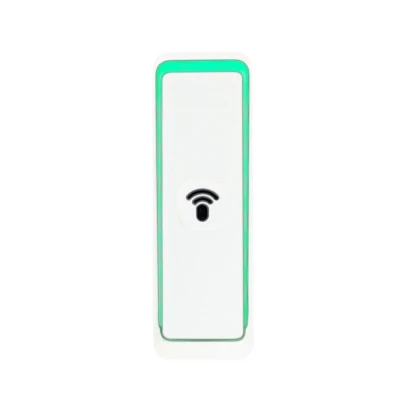

CIDRON Reader Slimline 13.56 MHz – White Case

• Operating frequency Contactless cards 13.56 MHz
• MIFARE CSN 4 byte, MIFARE CSN 7 byte MIFARE Classic and MIFARE DESFire EV1&EV2
• Supports other ISO 14443 A compatible cards CSN.
• Wiegand, RS485 (OSDP 1, OSDP 2, including Secure channel)
• Power supply 9 – 12V DC
• Operating temperature -20° – +60°C
• Operating humidity 0 – 95% RHNC (Relative Humidity No Condensation)
• Ingress Protection Classification IP 65 (request weather protection casing)
• Housing dimensions L=141mm, H=25mm, W=48mm
• Configuration Methods Configuration card, reader tool software or factory configured readers.
• Indicators – LED bar with red, green and Amber intensely adjustable.



High security DesFIREplatform readers, which read a unique code encoded into a sector of card’s key.The CIDRON slimline reader is available both with or without keypad. The version with keypad has backlit keys which are configurable to always be on or off and in auto mode which means that when a card is presented to the reader or a key is pressed the keypad will light up. The version without keypad has a symbol at the front of the reader which will be lit when a card is presented to a reader configured to auto mode.The user or their staff can only procure the cards from the registered supplier in the same way as a high security master keyed system.The Readers have a built–in mechanical tamper switch which allows for indication both break off protection and opening of the reader

Features & Benefits

* Suitable for internal or external applications

* DesFire or MifareClassic Cards

* Operating frequency – 13.56MHz

* Tamper Alarm built in

* 12 digit keypad

* Automatic Back light

* Power -9-30V DC

*Housing dimensions: H141 x W48 x D25mm
