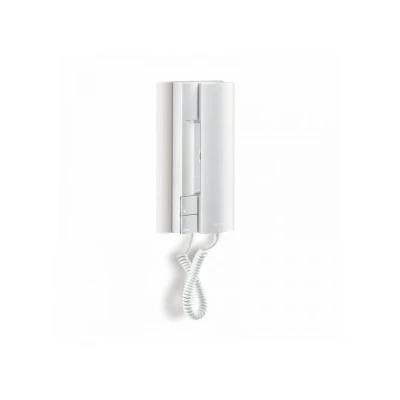

Bitron Universal Handset

The universal door phone AV1407/010 is suitable for most existing analogue systems, will adapt to all the most common brands.



1 door opener button and 1 service button

White ABS plastic

Installation in 4+n (5wires) systems and in 1+n (2 wires) systems

Possibilty to have traditional call on buzzer or electronic call on handset loudspeaker

Electronic call adjustment or disabling by a slide switch with three positions – Maximum volume – Minimum volume – call disabling ( this is signalled by a little red flad, that comes out of the door phone body)

Possibility to adjust the incoming speech signal volume(handset loudspeaker)

Ability to adjust the outcoming speech signal volume (handset loudspeaker)

To use this handset as a 2 wire handset does require a level of setting up, we suggest that you download and read the enclosed manual before ordering.

Terminals

AuAu            Aux Button
OpOp           Lock
6                  Ground
2                  Speech Out (Mic)
1                  Speech In (Speaker)
APP(E)         Electronic Call
APP(R)         Buzzer Call

Dimensions:

220mm x 83.4mm x 53.1mm
