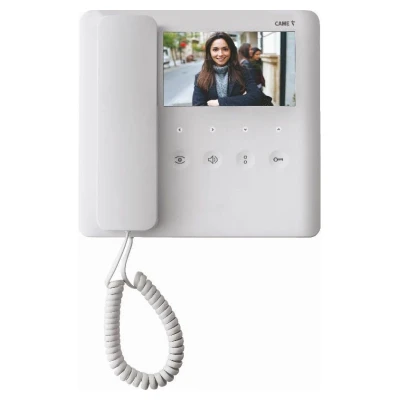

AGT Video Monitor With 5″ LCD Display For X1 System

White Video Monitor with 5″ LCD Display and Soft Touch Keys for X1 System



AGT is a video intercom with 5″ LCD display and soft touch buttons with concealed indicator LEDs in a matte white finish. It is equipped with OSD for adjusting video parameters (brightness, color, contrast), which ensures brilliant colors and excellent video quality.

This wall monitor has four main touch buttons for managing the primary functions such as door opening, self-insertion of entry panel videos, ringtone adjustment/exclusion (with signaling LED when excluded) and programmable auxiliary control.

The handset has essential lines for excellent ergonomics and magnetic hang-up that eliminates the risk of falling or incomplete contact.

It can also manage the “gate opener” function and displays the status of the gate controlled by means of a signaling LED.



Features:

• Matte white finish
• 5″ colour display with OSD
• 4 x main touch buttons for managing primary functions
• Handset with magnetic hang-up
• Concealed LED signal
• Soft-touch buttons
• Program melodies depending on the type of call
• Display color, brightness and contrast adjustment via OSD
• Adjust/exclude ringtone, with alert LED when set to exclude mode
• AUX2 for auxiliary functions and call to the porter
• Latch function (gate opener) for checking the status of external automations
• Automatic door-opener function
• Self-inserting video from entry panels
• Master/Slave function and video relaying between extensions function for simultaneous calls.



Technical Specifications:

• Colour: White
• Power supply by BUS (V): 15-20 DC
• Absorption by BUS (mA): 175
• Consumption in stand-by mode (mA): <1
• Operating Temperature (C): +5 – +40
• Protection Rating: 30
• Video standard: PAL/NTSC
• Compatible with the X1 and XIP systems
• It includes a bracket for wall mounting on horizontal or vertical 503 box, on 506E box and Ø 60 mm round box



Dimensions:

• 204 x 190 x 44.5 (hwd mm)
