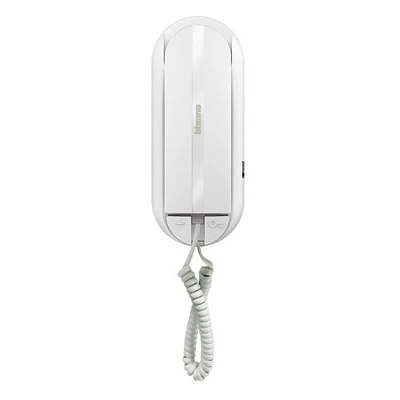

344242 Linea L2 Handset

Bticino Sprint – audio handset 2 wire

The surface mounted, white audio handset by Bticino from their Sprint range comes with the standard door lock release button and call tone volume adjustment.

Model 344202 is compatible with 2 wire Bticino systems and can be used on its own or as an addition to a kit to create a large door entry system with several handsets.

Please note: this particular handset version is for 2 wire Bticino systems. It has a the same look as the 5 wire version, therefore ensure you order the correct version handset for the right system. You cannot fit additional buttons to this handset. Please refer to 344212 if you require additional functions.

The 2 wire handsets require a Configurator pin in them, if you are replacing an existing handset you should be able to remove the pin from the original handset if not they are here Configurator Pins.

The configurator pins tell the handset which button it is connected to on the front panel, so for example if you are button 4 then you will have a No 4 configurator.

Features:

• Very robust build
• Volume adjustment for call tone

Technical data:

• Dimensions: 216 (H) x 101 (W) x 56 (D) mm
• Compatible with 2 wire Bticino systems
• Power supply from SCS BUS: 18 – 27 V DC
• Stand by absorption: 5 mA
• Max. operating absorption: 35 mA
• Operating temperature: -5 to +40 C
